SKF S7005 FE/HCP4ADBB

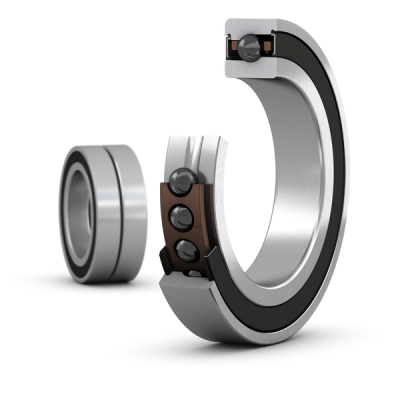

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
24.0 mm
Width
d1
31.6 mm
Shoulder diameter of inner ring (large side face)
D4
43.4 mm
Recess diameter outer ring shoulder (small side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.14 kg
Product net weight
Abutment dimensions
da
28.2 mm
Diameter of shaft abutment
da
31.2 mm
Diameter of shaft abutment
Db
44.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
