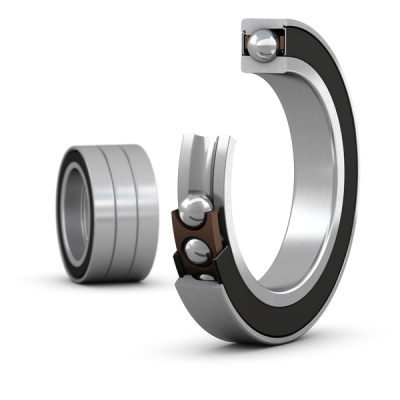

SKF S7006 CD/P4ATGB
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
39.0 mm
Width
d1
37.7 mm
Shoulder diameter of inner ring (large side face)
d2
37.7 mm
Shoulder diameter of inner ring (small side face)
D2
49.57 mm
Recess diameter of outer ring (large side face)
D4
51.52 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.344 kg
Product net weight
Abutment dimensions
da
34.6 mm
Diameter of shaft abutment
da
37.2 mm
Diameter of shaft abutment
db
34.6 mm
Diameter of shaft abutment
db
37.2 mm
Diameter of shaft abutment
Da
50.4 mm
Diameter of housing abutment
Db
53.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
