SKF S7009 ACD/P4ATBTB

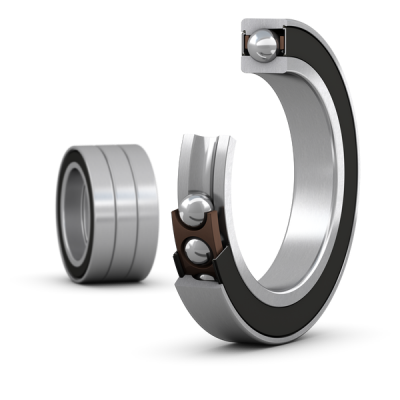

Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
48.0 mm
Width
d1
54.2 mm
Shoulder diameter of inner ring (large side face)
D4
71.33 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.702 kg
Product net weight
Abutment dimensions
da
49.6 mm
Diameter of shaft abutment
da
53.7 mm
Diameter of shaft abutment
Db
73.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
