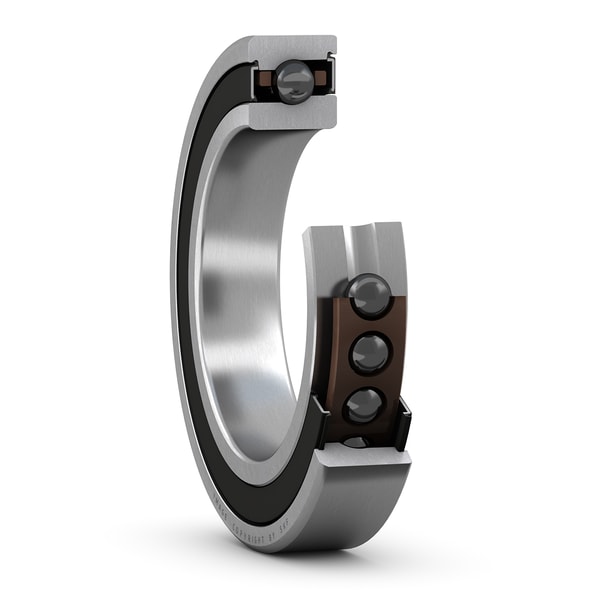

SKF S7009 CEGA/HCP4A
Super-precision, high speed, E design, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
d1
55.7 mm
Shoulder diameter of inner ring (large side face)
d2
53.6 mm
Shoulder diameter of inner ring (small side face)
D2
66.85 mm
Recess diameter of outer ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
16.1 mm
Distance from side face to pressure point
mass
0.219 kg
Product net weight
Abutment dimensions
da
49.6 mm
Diameter of shaft abutment
da
55.1 mm
Diameter of shaft abutment
db
49.6 mm
Diameter of shaft abutment
db
53.0 mm
Diameter of shaft abutment
Da
70.4 mm
Diameter of housing abutment
Db
70.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
