SKF S7014 CE/HCP4AQBCA

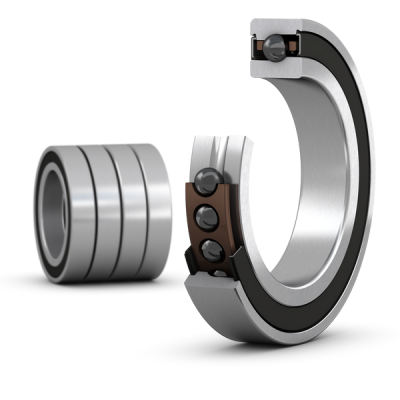

Matched set of four super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
80.0 mm
Width
d1
84.3 mm
Shoulder diameter of inner ring (large side face)
D4
101.8 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
2.27 kg
Product net weight
Abutment dimensions
da
76.0 mm
Diameter of shaft abutment
da
83.5 mm
Diameter of shaft abutment
Db
105.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
