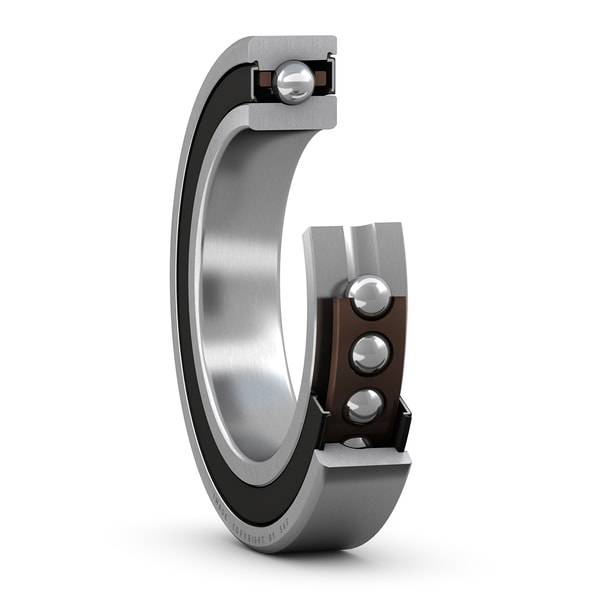

SKF S7015 ACEGB/P4A
Super-precision, high speed, E design, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
115.0 mm
Outside diameter
B
20.0 mm
Width
d1
89.28 mm
Shoulder diameter of inner ring (large side face)
d2
86.8 mm
Shoulder diameter of inner ring (small side face)
D2
104.1 mm
Recess diameter of outer ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
32.3 mm
Distance from side face to pressure point
mass
0.668 kg
Product net weight
Abutment dimensions
da
81.0 mm
Diameter of shaft abutment
da
88.5 mm
Diameter of shaft abutment
db
81.0 mm
Diameter of shaft abutment
db
86.0 mm
Diameter of shaft abutment
Da
109.0 mm
Diameter of housing abutment
Db
110.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
