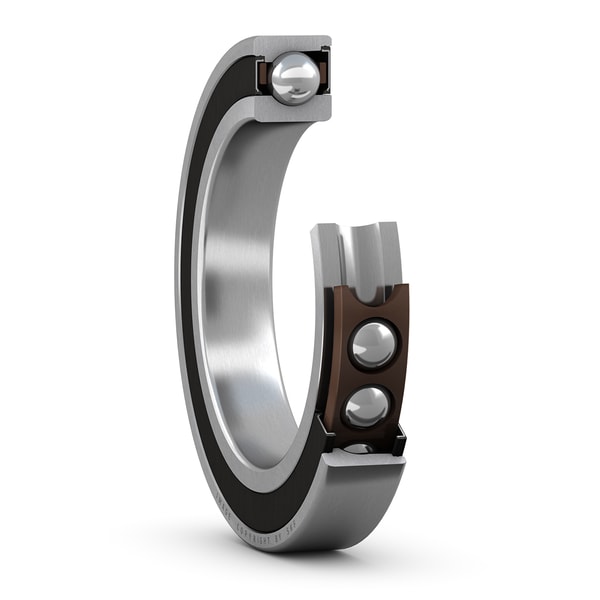

SKF S7015 CDGB/P4A
Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
115.0 mm
Outside diameter
B
20.0 mm
Width
d1
87.3 mm
Shoulder diameter of inner ring (large side face)
d2
87.3 mm
Shoulder diameter of inner ring (small side face)
D2
105.62 mm
Recess diameter of outer ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
22.8 mm
Distance from side face to pressure point
mass
0.63 kg
Product net weight
Abutment dimensions
da
81.0 mm
Diameter of shaft abutment
da
86.7 mm
Diameter of shaft abutment
db
81.0 mm
Diameter of shaft abutment
db
86.7 mm
Diameter of shaft abutment
Da
109.0 mm
Diameter of housing abutment
Db
111.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
