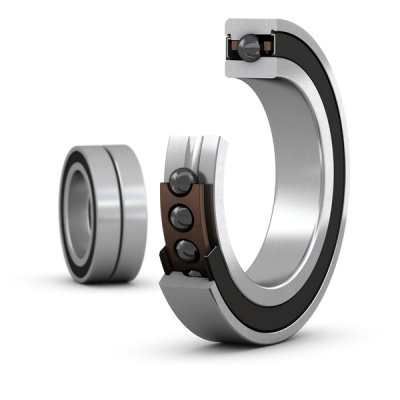

SKF S7020 ACE/HCP4ADT
Matched set of two super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
100.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
48.0 mm
Width
d1
117.38 mm
Shoulder diameter of inner ring (large side face)
d2
114.2 mm
Shoulder diameter of inner ring (small side face)
D2
136.0 mm
Recess diameter of outer ring (large side face)
D4
140.2 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.5 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
2.28 kg
Product net weight
Abutment dimensions
da
107.0 mm
Diameter of shaft abutment
da
116.7 mm
Diameter of shaft abutment
db
107.0 mm
Diameter of shaft abutment
db
113.5 mm
Diameter of shaft abutment
Da
143.0 mm
Diameter of housing abutment
Db
144.4 mm
Diameter of housing abutment
ra
1.5 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
