SKF S7022 CEGA/HCP4A

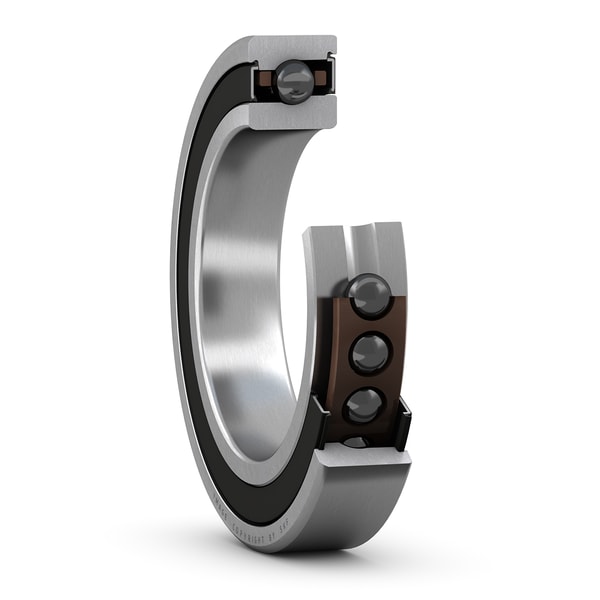

Super-precision, high speed, E design, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
110.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
28.0 mm
Width
d1
132.38 mm
Shoulder diameter of inner ring (large side face)
d2
129.2 mm
Shoulder diameter of inner ring (small side face)
D2
152.2 mm
Recess diameter of outer ring (large side face)
r1,2
2.0 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
a
32.9 mm
Distance from side face to pressure point
mass
1.61 kg
Product net weight
Abutment dimensions
da
118.8 mm
Diameter of shaft abutment
da
131.6 mm
Diameter of shaft abutment
db
118.8 mm
Diameter of shaft abutment
db
128.4 mm
Diameter of shaft abutment
Da
161.2 mm
Diameter of housing abutment
Db
164.4 mm
Diameter of housing abutment
ra
2.0 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
