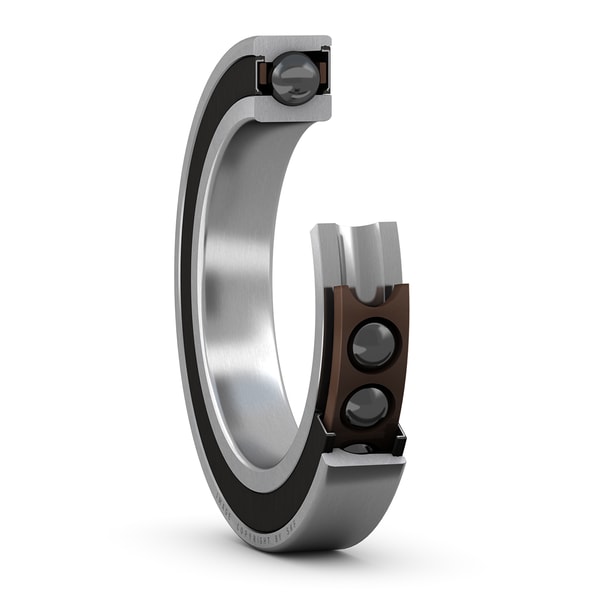

SKF S71907 CDGA/HCP4A
Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
10.0 mm
Width
d1
41.6 mm
Shoulder diameter of inner ring (large side face)
d2
41.6 mm
Shoulder diameter of inner ring (small side face)
D2
50.7 mm
Recess diameter of outer ring (large side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
a
11.1 mm
Distance from side face to pressure point
mass
0.069 kg
Product net weight
Abutment dimensions
da
38.2 mm
Diameter of shaft abutment
da
41.1 mm
Diameter of shaft abutment
db
38.2 mm
Diameter of shaft abutment
db
41.1 mm
Diameter of shaft abutment
Da
51.8 mm
Diameter of housing abutment
Db
53.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
