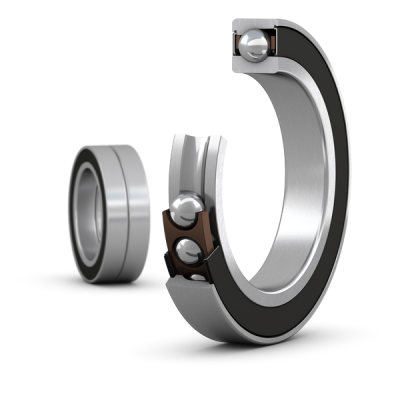

SKF S71908 ACD/P4ADBC
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
24.0 mm
Width
d1
47.1 mm
Shoulder diameter of inner ring (large side face)
D4
58.72 mm
Recess diameter outer ring shoulder (small side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.224 kg
Product net weight
Abutment dimensions
da
43.2 mm
Diameter of shaft abutment
da
46.6 mm
Diameter of shaft abutment
Db
60.6 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
