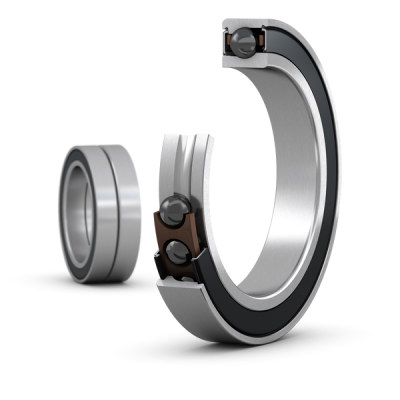

SKF S71911 ACE/HCP4ADGA
Matched set of two super-precision, high-speed E design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
26.0 mm
Width
d1
62.75 mm
Shoulder diameter of inner ring (large side face)
d2
60.7 mm
Shoulder diameter of inner ring (small side face)
D2
74.7 mm
Recess diameter of outer ring (large side face)
D4
76.15 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.305 kg
Product net weight
Abutment dimensions
da
59.6 mm
Diameter of shaft abutment
da
62.2 mm
Diameter of shaft abutment
db
57.0 mm
Diameter of shaft abutment
db
60.1 mm
Diameter of shaft abutment
Da
75.4 mm
Diameter of housing abutment
Db
78.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
