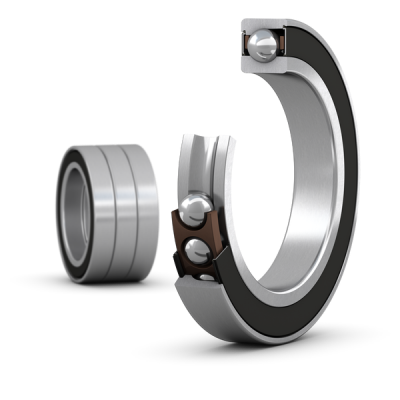

SKF S71913 ACD/P4ATBTB
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
39.0 mm
Width
d1
72.7 mm
Shoulder diameter of inner ring (large side face)
D4
86.62 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.625 kg
Product net weight
Abutment dimensions
da
69.6 mm
Diameter of shaft abutment
da
72.1 mm
Diameter of shaft abutment
Db
88.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
