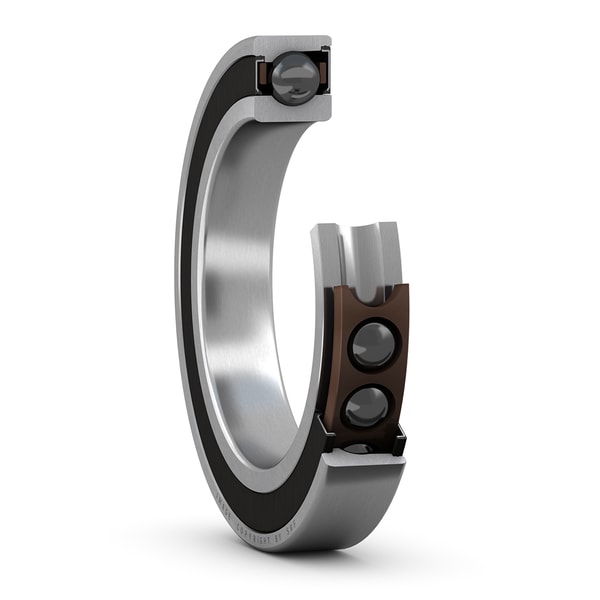

SKF S71916 ACDGB/HCP4A
Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
16.0 mm
Width
d1
89.2 mm
Shoulder diameter of inner ring (large side face)
d2
89.2 mm
Shoulder diameter of inner ring (small side face)
D2
103.74 mm
Recess diameter of outer ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
a
30.2 mm
Distance from side face to pressure point
mass
0.32 kg
Product net weight
Abutment dimensions
da
84.6 mm
Diameter of shaft abutment
da
88.6 mm
Diameter of shaft abutment
db
84.6 mm
Diameter of shaft abutment
db
88.6 mm
Diameter of shaft abutment
Da
105.0 mm
Diameter of housing abutment
Db
108.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
