SKF S71917 CD/P4ADGA

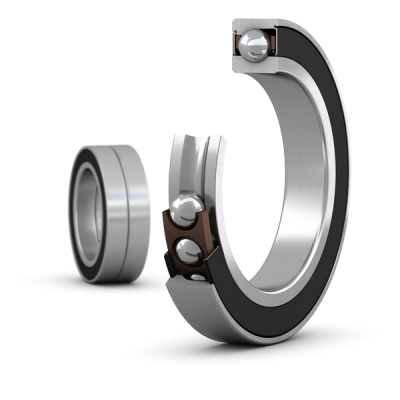

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
36.0 mm
Width
d1
95.8 mm
Shoulder diameter of inner ring (large side face)
d2
95.8 mm
Shoulder diameter of inner ring (small side face)
D2
112.12 mm
Recess diameter of outer ring (large side face)
D4
115.45 mm
Recess diameter outer ring shoulder (small side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
1.07 kg
Product net weight
Abutment dimensions
da
91.0 mm
Diameter of shaft abutment
da
95.2 mm
Diameter of shaft abutment
db
91.0 mm
Diameter of shaft abutment
db
95.2 mm
Diameter of shaft abutment
Da
114.0 mm
Diameter of housing abutment
Db
116.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
