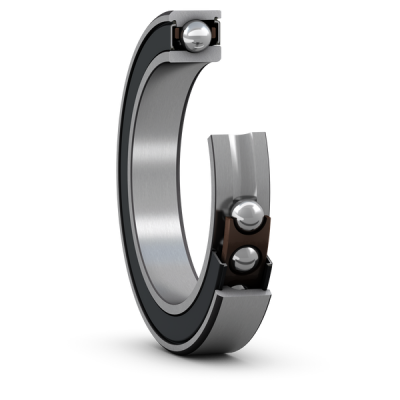

SKF S71917 CEGA/P4A
Super-precision, high speed, E design, universally matchable single row angular contact ball bearing with seals
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
18.0 mm
Width
d1
96.0 mm
Shoulder diameter of inner ring (large side face)
d2
92.9 mm
Shoulder diameter of inner ring (small side face)
D2
112.3 mm
Recess diameter of outer ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
22.7 mm
Distance from side face to pressure point
mass
0.519 kg
Product net weight
Abutment dimensions
da
91.0 mm
Diameter of shaft abutment
da
95.4 mm
Diameter of shaft abutment
db
88.2 mm
Diameter of shaft abutment
db
92.3 mm
Diameter of shaft abutment
Da
114.0 mm
Diameter of housing abutment
Db
116.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
