SKF S9B4-5750-AD1

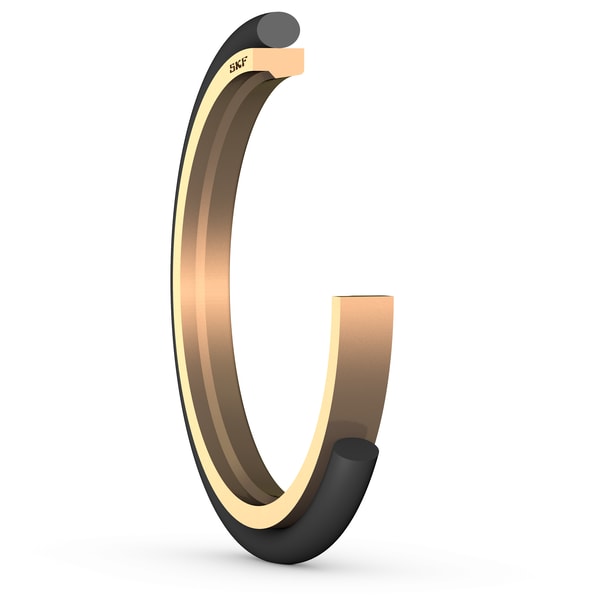

Hydraulic buffer seal, with O-ring energizer and PTFE or X Ecopur slide ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
146.05 mm
Rod diameter
D
167.13 mm
Housing groove diameter
L
8.13 mm
Housing groove width
S
10.54 mm
Radial depth
R
0.76 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0688 kg
Product net weight
