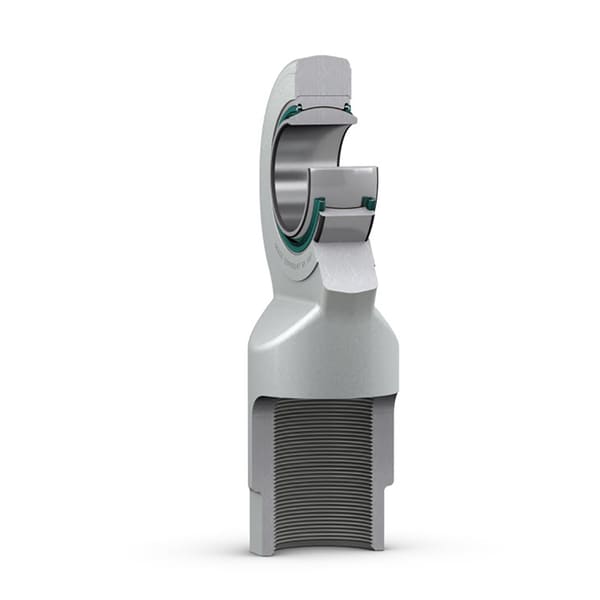

SKF SIL 25 TXE-2LS
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
d2
65.0 mm
Diameter head
B
20.0 mm
Width inner ring
G
M 24x2
Thread
C1
18.0 mm
Width head
h1
94.0 mm
Height shank end face - centre rod end eye
α
7.0 °
Angle of tilt
dk
35.5 mm
Raceway diameter inner ring
d4
35.0 mm
Diameter shank
l3
36.0 mm
Length thread
l4
128.0 mm
Length (height) housing
l5
18.0 mm
Length wrench flat
l7
30.0 mm
Distance shank chamfer - centre rod end eye
w
30.0 mm
Size wrench
r1
0.6 mm
Chamfer dimension bore
mass
0.65 kg
Product net weight
