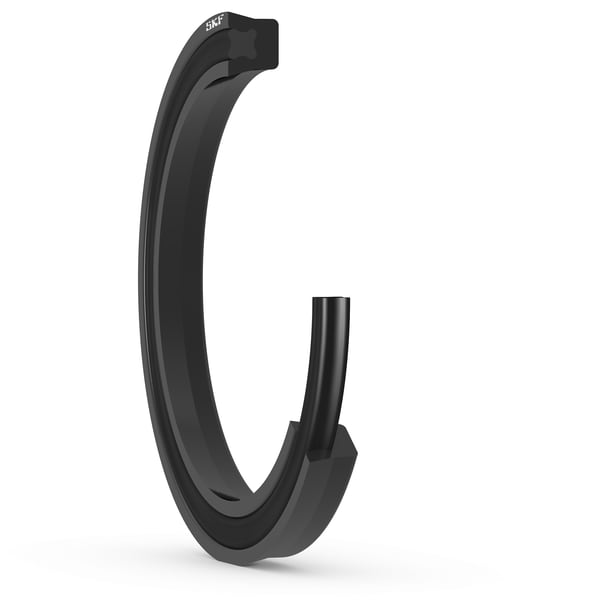

SKF STD125-1312-125-J1S
Symmetric hydraulic rod seal, with energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
33.32 mm
Rod diameter
D
39.67 mm
Housing groove diameter
L
3.49 mm
Housing groove width
S
3.18 mm
Radial depth
R
0.38 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0013 kg
Product net weight
