SKF STD187-562-187-J1S

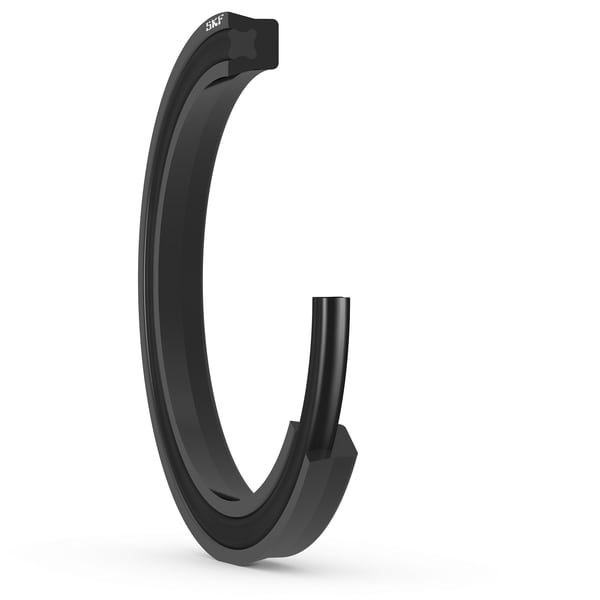

Symmetric hydraulic rod seal, with energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
14.27 mm
Rod diameter
D
23.77 mm
Housing groove diameter
L
5.22 mm
Housing groove width
S
4.75 mm
Radial depth
R
0.38 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0016 kg
Product net weight
