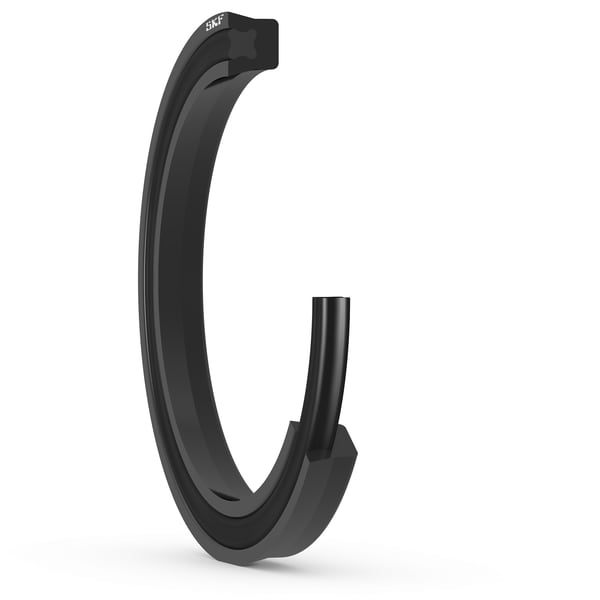

SKF STD250-812-250-J1S
Symmetric hydraulic rod seal, with energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.62 mm
Rod diameter
D
33.32 mm
Housing groove diameter
L
6.99 mm
Housing groove width
S
6.35 mm
Radial depth
R
0.51 mm
Groove radius
C
7.92 mm
Lead-in chamfer length
mass
0.004 kg
Product net weight
