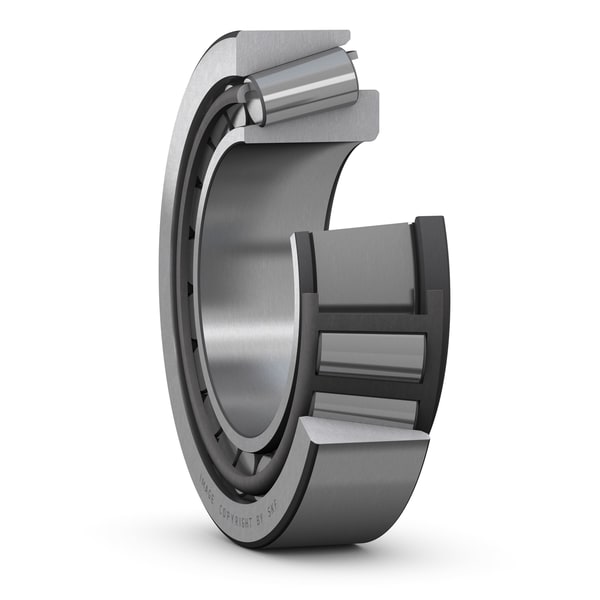

SKF T4DB 170
Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
170.0 mm
Bore diameter
D
230.0 mm
Outside diameter
T
32.0 mm
Total width
d1
197.5 mm
Shoulder diameter of inner ring
B
30.0 mm
Width of inner ring
C
23.0 mm
Width of outer ring
r1,2
3.0 mm
Chamfer dimension of inner ring
r3,4
3.0 mm
Chamfer dimension of outer ring
a
44.295 mm
Distance side face to pressure point
mass
3.45 kg
Product net weight
