SKF T7FC 050T69/CL7CDTC10

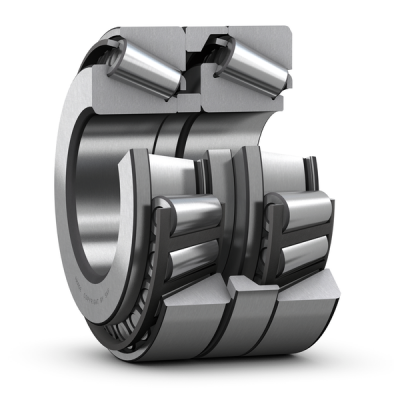

Matched tapered roller bearings arranged in tandem
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
105.0 mm
Outside diameter
T
69.0 mm
Total width
d1
81.3 mm
Shoulder diameter of inner ring
B
66.0 mm
Width of inner rings
C
59.0 mm
Width of outer rings
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
a
37.0 mm
Distance between pressure points
mass
2.75 kg
Product net weight
