Timken 07100 – 07196 (07000LA)
Tapered Roller Bearings - TSL (DUO-FACE® Plus Seal) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
07100 – 07196 (07000LA)
Specifications
Series
07000
Cone Part Number
07100
Cup Part Number
07196
Seal Part Number
07000LA
Design Unit
Inch
Cage Material
Stamped Steel

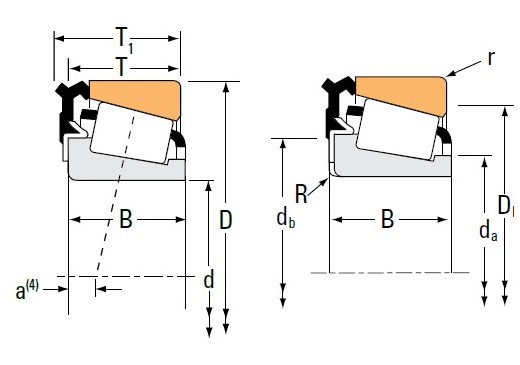

Dimensions
d - Bore
25.400 mm
D - Cup Outer Diameter
50.005 mm
B - Cone Width
14.260 mm
C - Cup Width
9.525 mm
T - Bearing Width
13.495 mm
T1 - Total Width
15.4 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1 mm
r - Cup Backface "To Clear" Radius2
1.02 mm
da - Cone Frontface Backing Diameter
29.5 mm
db - Cone Backface Backing Diameter
30.5 mm
Da - Cup Frontface Backing Diameter
47.50 mm
Db - Cup Backface Backing Diameter
44.45 mm
Ab - Cage-Cone Frontface Clearance
2 mm
Aa - Cage-Cone Backface Clearance
0 mm
a - Effective Center Location3
-2.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
7550 N
C1 - Dynamic Radial Rating (1 million revolutions)5
29100 N
C0 - Static Radial Rating
29600 N
C6
5190 N
Factors
K - Factor7
1.45
e - ISO Factor8
0.4
Y - ISO Factor9
1.49
Y1 - ISO Factor10
1.68
Y2 - ISO Factor11
2.5
G1 - Heat Generation Factor (Roller-Raceway)
7.6
G2 - Heat Generation Factor (Rib-Roller End)
7.1
Cg - Geometry Factor12
0.0509
