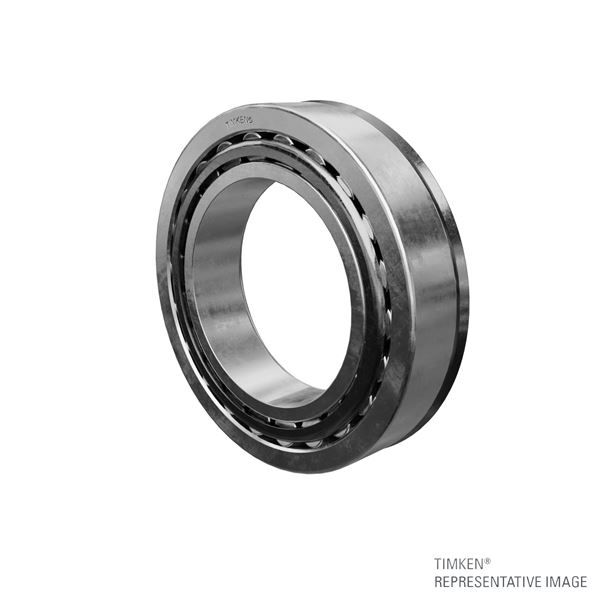

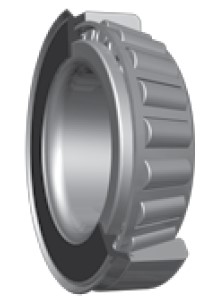

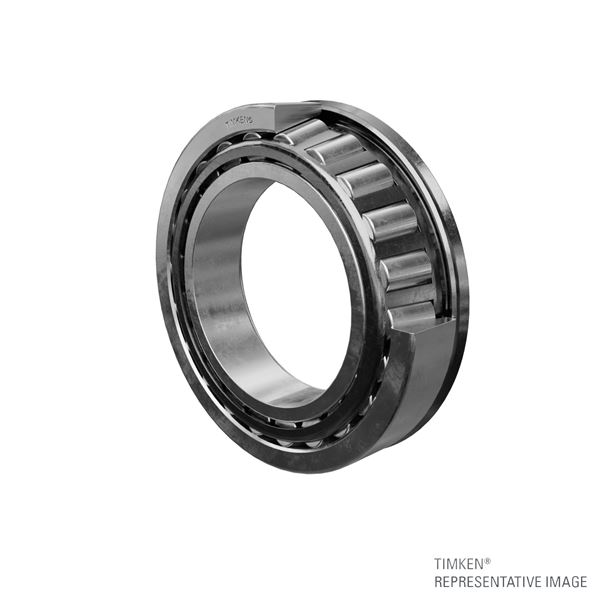

Timken LM67048 – LM67010 (LM67000LA)
Tapered Roller Bearings - TSL (DUO-FACE® Plus Seal) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM67048 – LM67010 (LM67000LA)
Specifications
Series
LM67000
Cone Part Number
LM67048
Cup Part Number
LM67010
Seal Part Number
LM67000LA
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
31.750 mm
D - Cup Outer Diameter
59.131 mm
B - Cone Width
16.764 mm
C - Cup Width
11.811 mm
T - Bearing Width
15.875 mm
T1 - Total Width
17.78 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
1.27 mm
da - Cone Frontface Backing Diameter
36 mm
db - Cone Backface Backing Diameter
42.5 mm
Da - Cup Frontface Backing Diameter
55.90 mm
Db - Cup Backface Backing Diameter
52.07 mm
Ab - Cage-Cone Frontface Clearance
1.3 mm
Aa - Cage-Cone Backface Clearance
0.3 mm
a - Effective Center Location3
-3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
12100 N
C1 - Dynamic Radial Rating (1 million revolutions)5
46700 N
C0 - Static Radial Rating
44600 N
C6
8550 N
Factors
K - Factor7
1.42
e - ISO Factor8
0.41
Y - ISO Factor9
1.46
Y1 - ISO Factor10
1.64
Y2 - ISO Factor11
2.44
G1 - Heat Generation Factor (Roller-Raceway)
12.8
G2 - Heat Generation Factor (Rib-Roller End)
9.93
Cg - Geometry Factor12
0.0612
