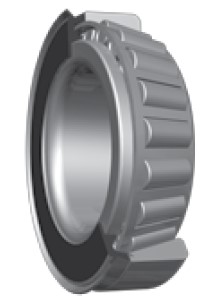

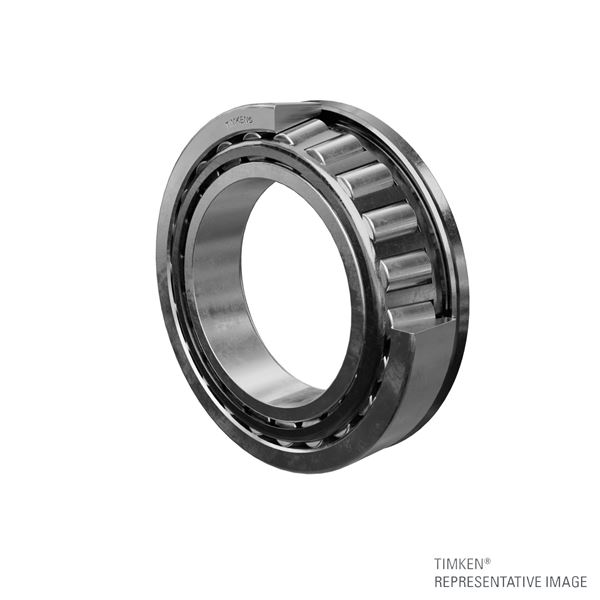

Timken LM48548 – LM48510 (LM48500LA)
Tapered Roller Bearings - TSL (DUO-FACE® Plus Seal) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM48548 – LM48510 (LM48500LA)
Specifications
Series
LM48500
Cone Part Number
LM48548
Cup Part Number
LM48510
Seal Part Number
LM48500LA
Design Unit
Inch
Cage Material
Stamped Steel

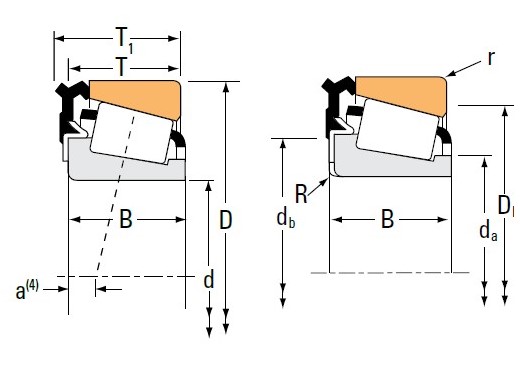

Dimensions
d - Bore
34.925 mm
D - Cup Outer Diameter
65.088 mm
B - Cone Width
18.288 mm
C - Cup Width
13.970 mm
T - Bearing Width
18.034 mm
T1 - Total Width
19.940 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
1.27 mm
da - Cone Frontface Backing Diameter
41.5 mm
db - Cone Backface Backing Diameter
48 mm
Da - Cup Frontface Backing Diameter
61.00 mm
Db - Cup Backface Backing Diameter
57.91 mm
Ab - Cage-Cone Frontface Clearance
2 mm
Aa - Cage-Cone Backface Clearance
0.3 mm
a - Effective Center Location3
-3.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
16700 N
C1 - Dynamic Radial Rating (1 million revolutions)5
64600 N
C0 - Static Radial Rating
63100 N
C6
10800 N
Factors
K - Factor7
1.55
e - ISO Factor8
0.38
Y - ISO Factor9
1.59
Y1 - ISO Factor10
1.79
Y2 - ISO Factor11
2.67
Cg - Geometry Factor12
0.0666
