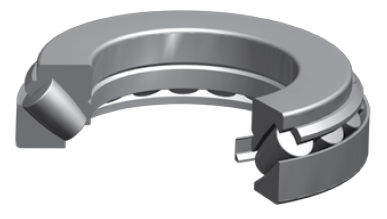

Timken 292/800EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
800 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362253

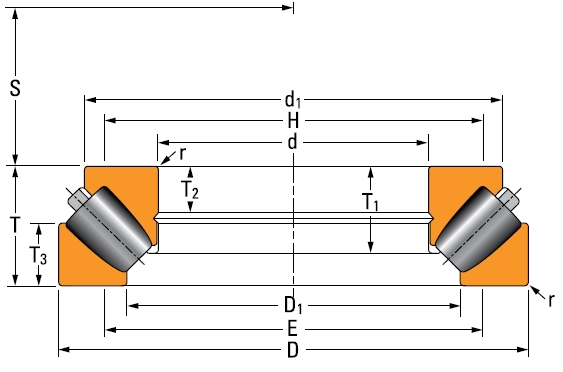

Dimensions
D - Outside Diameter
1060.000 mm
d1 - Cone Outside Diameter
1010 mm
D1 - Cup Bore
906 mm
E - Shoulder Diameter - Housing (Max)
931 mm
H - Shoulder Diameter - Shaft (Min)
957 mm
r - Fillet Radius
6 mm
S - Dimension
434 mm
T - Total Width
155 mm
T1 - Cage Position
105.7 mm
T2 - Groove Position
52 mm
T3 - Cup Width
78.5 mm
T4 - Cone Width
94 mm
Basic Load Ratings
Static Load Rating
33300000 N
Dynamic Load Rating
6420000 N
