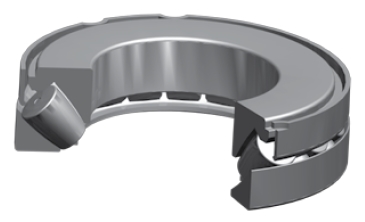

Timken 29264EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
320.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362581

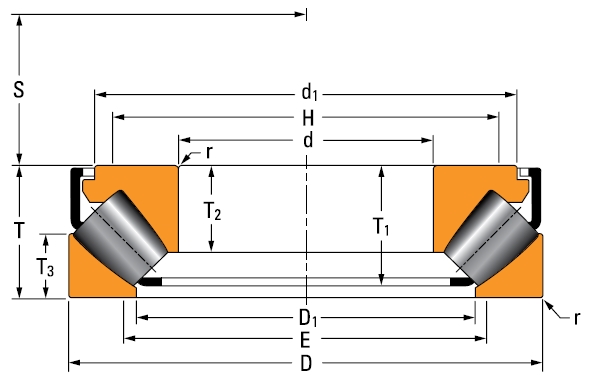

Dimensions
D - Outside Diameter
440 mm
d1 - Cone Outside Diameter
405.7 mm
D1 - Cup Bore
372 mm
E - Shoulder Diameter - Housing (Max)
383 mm
H - Shoulder Diameter - Shaft (Min)
393 mm
r - Fillet Radius
2.5 mm
S - Dimension
172 mm
T - Total Width
73 mm
T1 - Cage Position
55.4 mm
T3 - Cup Width
39 mm
T4 - Cone Width
42.3 mm
Basic Load Ratings
Static Load Rating
5160000 N
Dynamic Load Rating
1320000 N
