Timken 29268EJ

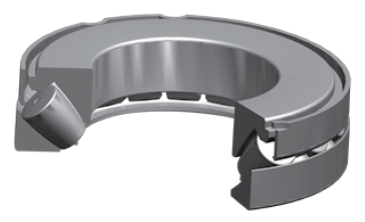

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
340.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362598

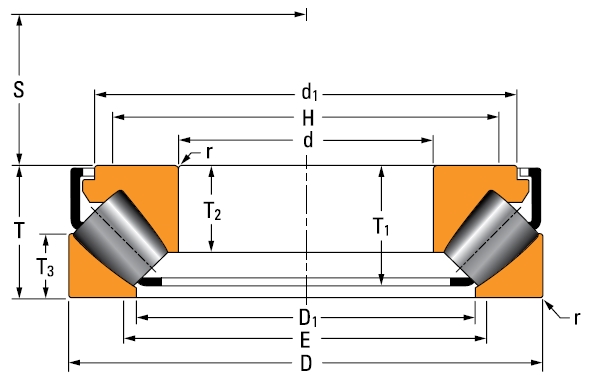

Dimensions
D - Outside Diameter
460 mm
d1 - Cone Outside Diameter
426.8 mm
D1 - Cup Bore
393 mm
E - Shoulder Diameter - Housing (Max)
404 mm
H - Shoulder Diameter - Shaft (Min)
414 mm
r - Fillet Radius
2.5 mm
S - Dimension
183 mm
T - Total Width
73 mm
T1 - Cage Position
57 mm
T3 - Cup Width
37 mm
T4 - Cone Width
43.8 mm
Basic Load Ratings
Static Load Rating
5390000 N
Dynamic Load Rating
1350000 N
