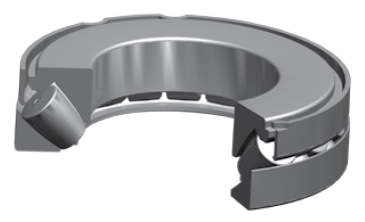

Timken 29272EJW18W66
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
360.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362628

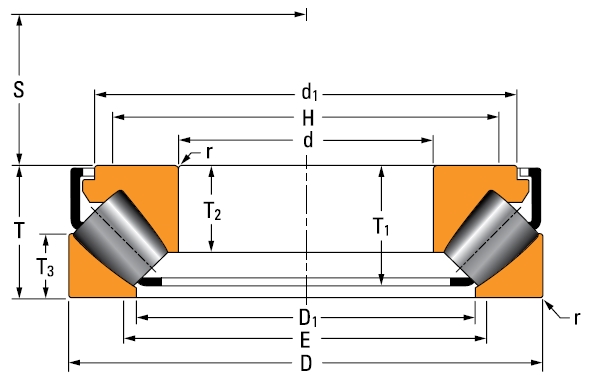

Dimensions
D - Outside Diameter
500 mm
d1 - Cone Outside Diameter
464.4 mm
D1 - Cup Bore
423 mm
E - Shoulder Diameter - Housing (Max)
436 mm
H - Shoulder Diameter - Shaft (Min)
448 mm
r - Fillet Radius
3 mm
S - Dimension
194.5 mm
T - Total Width
85 mm
T1 - Cage Position
66.1 mm
T3 - Cup Width
44 mm
T4 - Cone Width
51 mm
Basic Load Ratings
Static Load Rating
6960000 N
Dynamic Load Rating
1750000 N
