Timken 29288EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
440 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362291

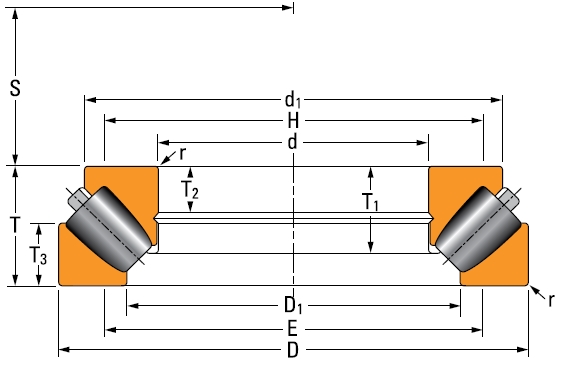

Dimensions
D - Outside Diameter
600 mm
d1 - Cone Outside Diameter
570 mm
D1 - Cup Bore
506 mm
E - Shoulder Diameter - Housing (Max)
523 mm
H - Shoulder Diameter - Shaft (Min)
537 mm
r - Fillet Radius
4 mm
S - Dimension
235 mm
T - Total Width
95 mm
T1 - Cage Position
67 mm
T2 - Groove Position
30 mm
T3 - Cup Width
47 mm
T4 - Cone Width
61 mm
Basic Load Ratings
Static Load Rating
10500000 N
Dynamic Load Rating
2100000 N
