Timken 29296EM

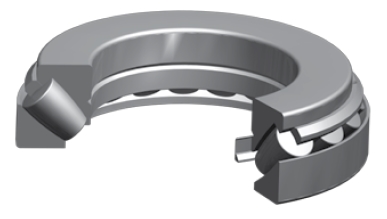

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
480 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
0087796362284

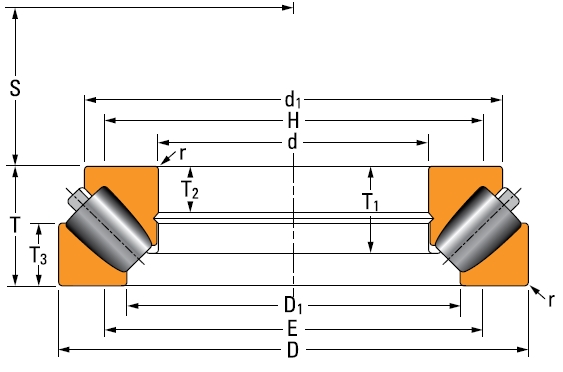

Dimensions
D - Outside Diameter
650 mm
d1 - Cone Outside Diameter
620 mm
D1 - Cup Bore
553 mm
E - Shoulder Diameter - Housing (Max)
570 mm
H - Shoulder Diameter - Shaft (Min)
584 mm
r - Fillet Radius
4 mm
S - Dimension
259 mm
T - Total Width
103 mm
T1 - Cage Position
68.6 mm
T2 - Groove Position
33 mm
T3 - Cup Width
53 mm
T4 - Cone Width
62 mm
Basic Load Ratings
Static Load Rating
11700000 N
Dynamic Load Rating
2340000 N
