Timken 293/750EM

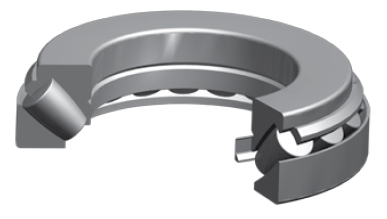

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
750 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796014718
Dimensions
D - Outside Diameter
1120 mm
d1 - Cone Outside Diameter
1028 mm
D1 - Cup Bore
884 mm
E - Shoulder Diameter - Housing (Max)
930 mm
H - Shoulder Diameter - Shaft (Min)
966 mm
r - Fillet Radius
8 mm
S - Dimension
418 mm
T - Total Width
224 mm
T1 - Cage Position
156.42 mm
T2 - Groove Position
83.31 mm
T3 - Cup Width
117 mm
Basic Load Ratings
Static Load Rating
55860000 N
Dynamic Load Rating
11770000 N
Thermal Speed Rating
240 rpm
