Timken 29336EJ

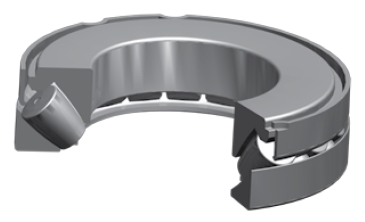

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
180 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796163034

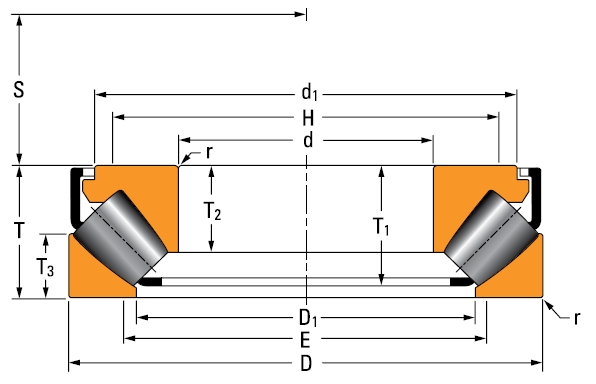

Dimensions
D - Outside Diameter
300 mm
d1 - Cone Outside Diameter
270 mm
D1 - Cup Bore
227 mm
E - Shoulder Diameter - Housing (Max)
238 mm
H - Shoulder Diameter - Shaft (Min)
251 mm
r - Fillet Radius
2.5 mm
S - Dimension
103 mm
T - Total Width
73.03 mm
T1 - Cage Position
62.7 mm
T3 - Cup Width
35.5 mm
T4 - Cone Width
46 mm
Basic Load Ratings
Static Load Rating
4130000 N
Dynamic Load Rating
1430000 N
Thermal Speed Rating
1200 rpm
