Timken 29338EJN1
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
190 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

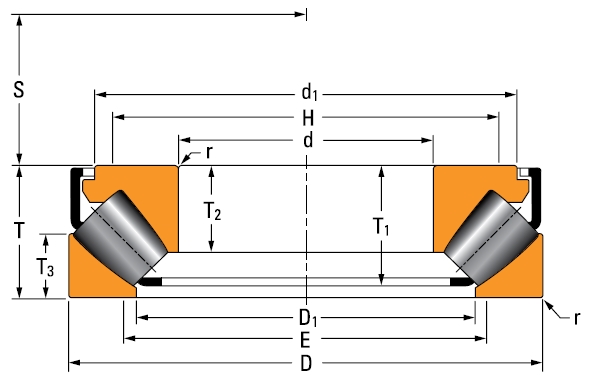

Dimensions
D - Outside Diameter
320 mm
d1 - Cone Outside Diameter
285.6 mm
D1 - Cup Bore
243.5 mm
E - Shoulder Diameter - Housing (Max)
253 mm
H - Shoulder Diameter - Shaft (Min)
268 mm
r - Fillet Radius
3 mm
S - Dimension
110 mm
T - Total Width
78.13 mm
T1 - Cage Position
67.7 mm
T3 - Cup Width
36 mm
T4 - Cone Width
49 mm
Basic Load Ratings
Static Load Rating
4550000 N
Dynamic Load Rating
1620000 N
Thermal Speed Rating
1100 rpm
