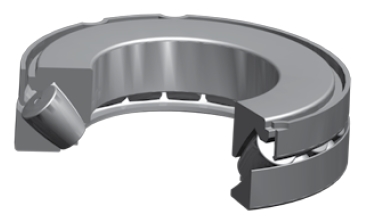

Timken 29344EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
220 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796220522

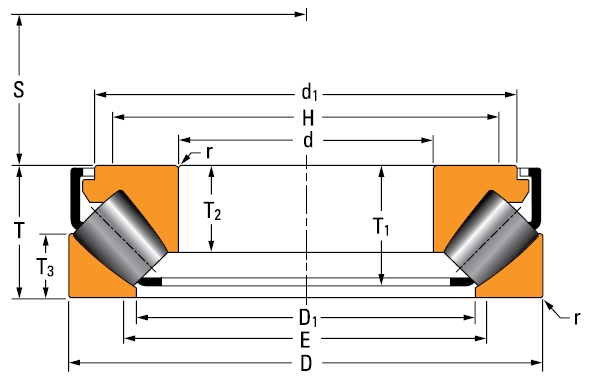

Dimensions
D - Outside Diameter
360 mm
d1 - Cone Outside Diameter
326.3 mm
D1 - Cup Bore
273.5 mm
E - Shoulder Diameter - Housing (Max)
288 mm
H - Shoulder Diameter - Shaft (Min)
303 mm
r - Fillet Radius
3 mm
S - Dimension
125 mm
T - Total Width
85.03 mm
T1 - Cage Position
74.1 mm
T3 - Cup Width
41 mm
T4 - Cone Width
55 mm
Basic Load Ratings
Static Load Rating
5840000 N
Dynamic Load Rating
1950000 N
Thermal Speed Rating
960 rpm
