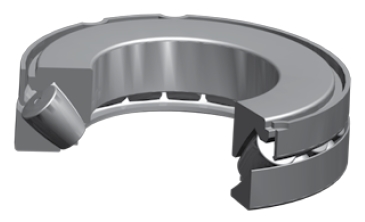

Timken 29360EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
300 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796222724

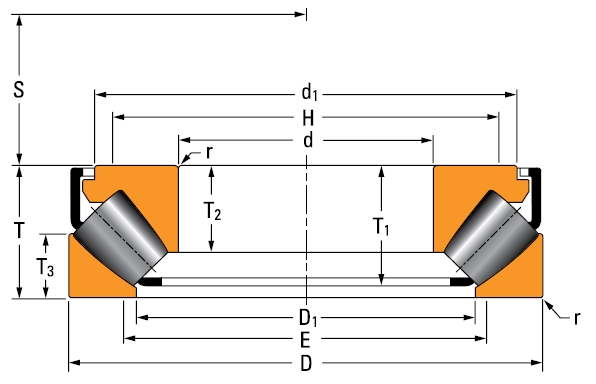

Dimensions
D - Outside Diameter
480 mm
d1 - Cone Outside Diameter
434.1 mm
D1 - Cup Bore
372 mm
E - Shoulder Diameter - Housing (Max)
388 mm
H - Shoulder Diameter - Shaft (Min)
407 mm
r - Fillet Radius
4 mm
S - Dimension
168 mm
T - Total Width
109.04 mm
T1 - Cage Position
95.5 mm
T3 - Cup Width
51 mm
T4 - Cone Width
70 mm
Basic Load Ratings
Static Load Rating
9900000 N
Dynamic Load Rating
3150000 N
Thermal Speed Rating
690 rpm
