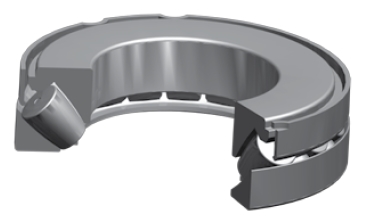

Timken 29364EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
320.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796358164
Dimensions
D - Outside Diameter
500 mm
d1 - Cone Outside Diameter
460 mm
D1 - Cup Bore
391 mm
E - Shoulder Diameter - Housing (Max)
407 mm
H - Shoulder Diameter - Shaft (Min)
427 mm
r - Fillet Radius
4 mm
S - Dimension
180 mm
T - Total Width
109 mm
T1 - Cage Position
94.4 mm
T3 - Cup Width
53 mm
T4 - Cone Width
68 mm
Basic Load Ratings
Static Load Rating
10700000 N
Dynamic Load Rating
2830000 N
Thermal Speed Rating
650 rpm
