Timken 29368EJ

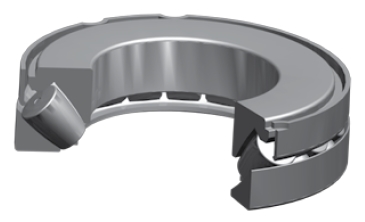

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
340.000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

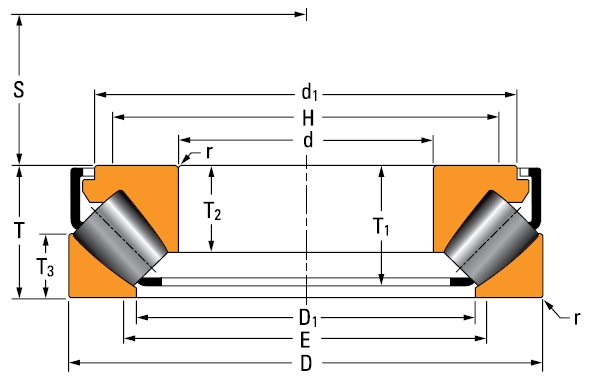

Dimensions
D - Outside Diameter
540 mm
d1 - Cone Outside Diameter
497 mm
D1 - Cup Bore
428 mm
E - Shoulder Diameter - Housing (Max)
443 mm
H - Shoulder Diameter - Shaft (Min)
463 mm
r - Fillet Radius
4 mm
S - Dimension
192 mm
T - Total Width
122 mm
T1 - Cage Position
102.6 mm
T3 - Cup Width
59.5 mm
T4 - Cone Width
73.5 mm
Basic Load Ratings
Static Load Rating
12000000 N
Dynamic Load Rating
3120000 N
Thermal Speed Rating
620 rpm
