Timken 29376EM

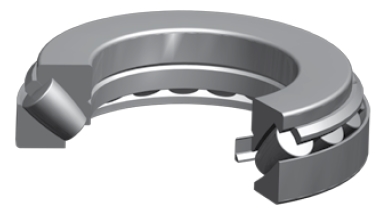

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
380 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796065987

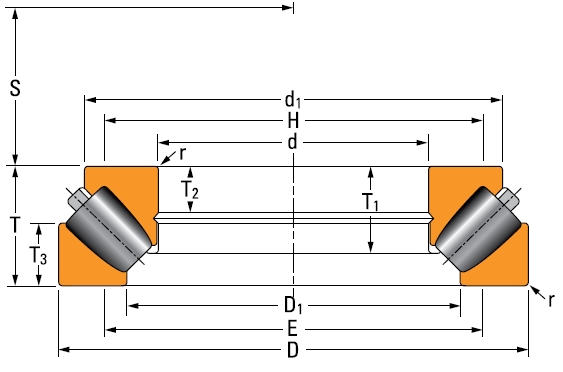

Dimensions
D - Outside Diameter
600 mm
d1 - Cone Outside Diameter
546 mm
D1 - Cup Bore
455 mm
E - Shoulder Diameter - Housing (Max)
486 mm
H - Shoulder Diameter - Shaft (Min)
507 mm
r - Fillet Radius
5 mm
S - Dimension
216 mm
T - Total Width
132 mm
T1 - Cage Position
94.5 mm
T2 - Groove Position
49 mm
T3 - Cup Width
70 mm
Basic Load Ratings
Static Load Rating
17780000 N
Dynamic Load Rating
4300000 N
Thermal Speed Rating
500 rpm
