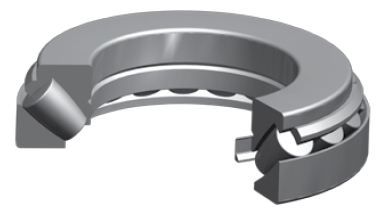

Timken 29380EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
400 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
Dimensions
D - Outside Diameter
620 mm
d1 - Cone Outside Diameter
575 mm
D1 - Cup Bore
494 mm
E - Shoulder Diameter - Housing (Max)
510 mm
H - Shoulder Diameter - Shaft (Min)
534 mm
r - Fillet Radius
5 mm
S - Dimension
225 mm
T - Total Width
132 mm
T1 - Cage Position
90.5 mm
T2 - Groove Position
48 mm
T3 - Cup Width
64 mm
Basic Load Ratings
Static Load Rating
15100000 N
Dynamic Load Rating
3850000 N
Thermal Speed Rating
530 rpm
