Timken 29384EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
420 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

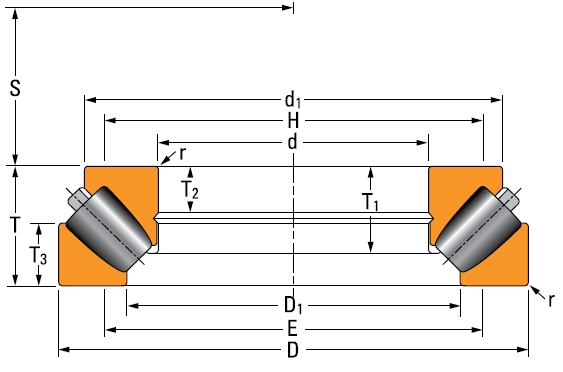

Dimensions
D - Outside Diameter
650 mm
d1 - Cone Outside Diameter
600 mm
D1 - Cup Bore
520 mm
E - Shoulder Diameter - Housing (Max)
537 mm
H - Shoulder Diameter - Shaft (Min)
561 mm
r - Fillet Radius
5 mm
S - Dimension
235 mm
T - Total Width
140 mm
T1 - Cage Position
95.8 mm
T2 - Groove Position
53 mm
T3 - Cup Width
67.5 mm
Basic Load Ratings
Static Load Rating
16000000 N
Dynamic Load Rating
4040000 N
Thermal Speed Rating
510 rpm
