Timken 29388EM

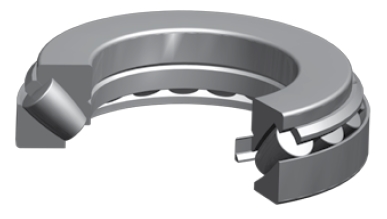

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
440 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796080690

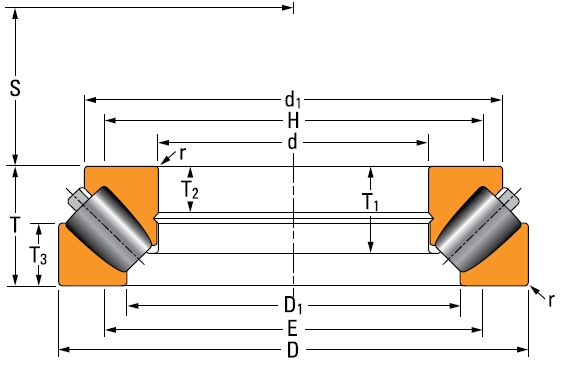

Dimensions
D - Outside Diameter
680 mm
d1 - Cone Outside Diameter
631.5 mm
D1 - Cup Bore
540 mm
E - Shoulder Diameter - Housing (Max)
561 mm
H - Shoulder Diameter - Shaft (Min)
585 mm
r - Fillet Radius
5 mm
S - Dimension
245 mm
T - Total Width
145 mm
T1 - Cage Position
101.1 mm
T2 - Groove Position
52 mm
T3 - Cup Width
70.5 mm
Basic Load Ratings
Static Load Rating
18500000 N
Dynamic Load Rating
4530000 N
Thermal Speed Rating
480 rpm
