Timken 29396EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
480 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

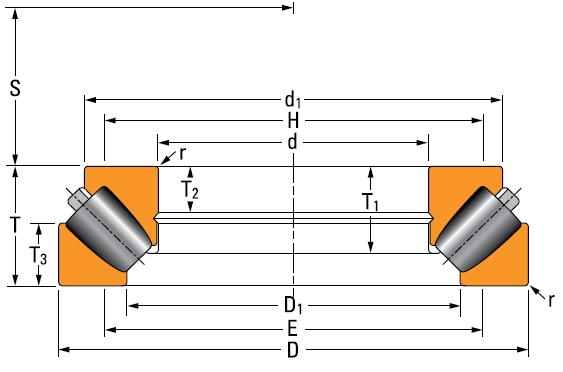

Dimensions
D - Outside Diameter
730 mm
d1 - Cone Outside Diameter
680 mm
D1 - Cup Bore
591 mm
E - Shoulder Diameter - Housing (Max)
610 mm
H - Shoulder Diameter - Shaft (Min)
635 mm
r - Fillet Radius
5 mm
S - Dimension
270 mm
T - Total Width
150 mm
T1 - Cage Position
101.6 mm
T2 - Groove Position
54 mm
T3 - Cup Width
73.5 mm
Basic Load Ratings
Static Load Rating
20000000 N
Dynamic Load Rating
4820000 N
Thermal Speed Rating
440 rpm
