Timken 294/530EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
530 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796014671

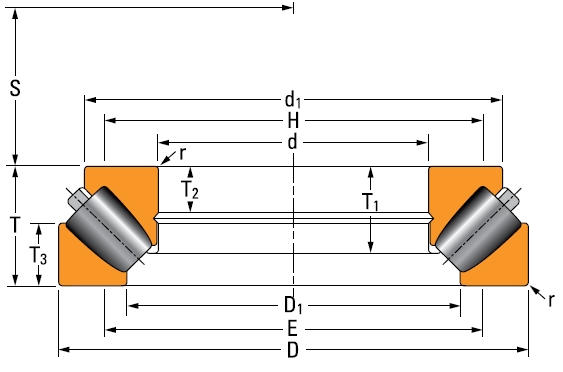

Dimensions
D - Outside Diameter
920 mm
d1 - Cone Outside Diameter
823 mm
D1 - Cup Bore
657 mm
E - Shoulder Diameter - Housing (Max)
716 mm
H - Shoulder Diameter - Shaft (Min)
753 mm
r - Fillet Radius
8 mm
S - Dimension
310 mm
T - Total Width
236 mm
T1 - Cage Position
171.42 mm
T2 - Groove Position
93.7 mm
T3 - Cup Width
124 mm
Basic Load Ratings
Static Load Rating
47120000 N
Dynamic Load Rating
11440000 N
Thermal Speed Rating
300 rpm
