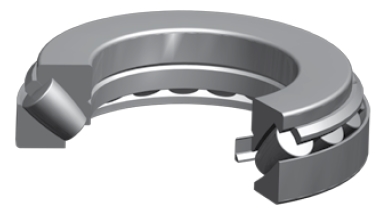

Timken 294/800EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
800 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

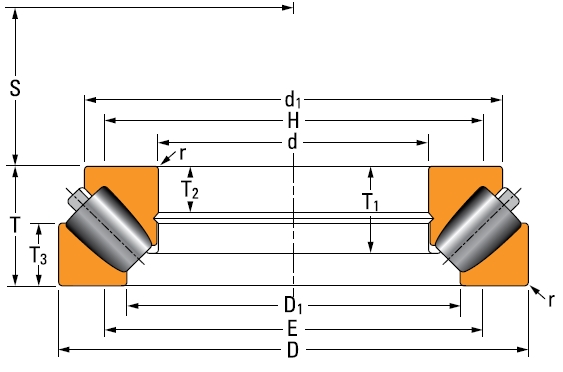

Dimensions
D - Outside Diameter
1360 mm
d1 - Cone Outside Diameter
1219 mm
D1 - Cup Bore
988 mm
E - Shoulder Diameter - Housing (Max)
1067 mm
H - Shoulder Diameter - Shaft (Min)
1122 mm
r - Fillet Radius
12 mm
S - Dimension
467 mm
T - Total Width
335 mm
T1 - Cage Position
241.59 mm
T2 - Groove Position
131.5 mm
T3 - Cup Width
173.5 mm
Basic Load Ratings
Static Load Rating
98280000 N
Dynamic Load Rating
22700000 N
Thermal Speed Rating
190 rpm
