Timken 29424EJN1

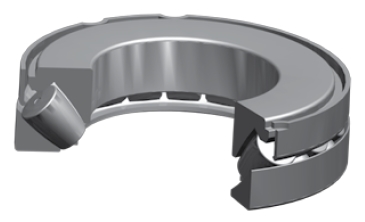

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
120 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
Dimensions
D - Outside Diameter
250 mm
d1 - Cone Outside Diameter
216.8 mm
D1 - Cup Bore
171 mm
E - Shoulder Diameter - Housing (Max)
182 mm
H - Shoulder Diameter - Shaft (Min)
197 mm
r - Fillet Radius
3 mm
S - Dimension
74 mm
T - Total Width
78 mm
T1 - Cage Position
68.5 mm
T3 - Cup Width
36.5 mm
T4 - Cone Width
50.5 mm
Basic Load Ratings
Static Load Rating
3320000 N
Dynamic Load Rating
1390000 N
Thermal Speed Rating
1500 rpm
