Timken 29436EJN1

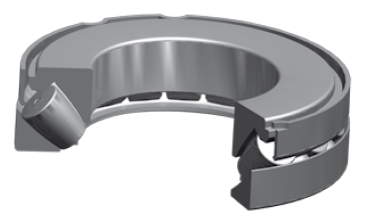

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
180 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

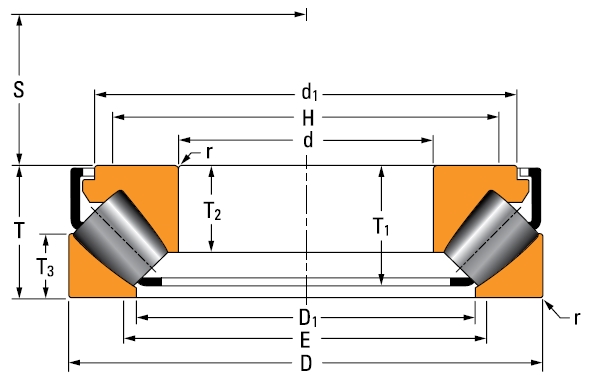

Dimensions
D - Outside Diameter
360 mm
d1 - Cone Outside Diameter
315.9 mm
D1 - Cup Bore
250 mm
E - Shoulder Diameter - Housing (Max)
267 mm
H - Shoulder Diameter - Shaft (Min)
286 mm
r - Fillet Radius
4 mm
S - Dimension
110 mm
T - Total Width
109.03 mm
T1 - Cage Position
94.1 mm
T3 - Cup Width
53 mm
T4 - Cone Width
69.5 mm
Basic Load Ratings
Static Load Rating
7090000 N
Dynamic Load Rating
2660000 N
Thermal Speed Rating
990 rpm
