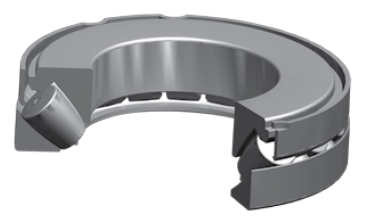

Timken 29444EJ
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
220 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796226432

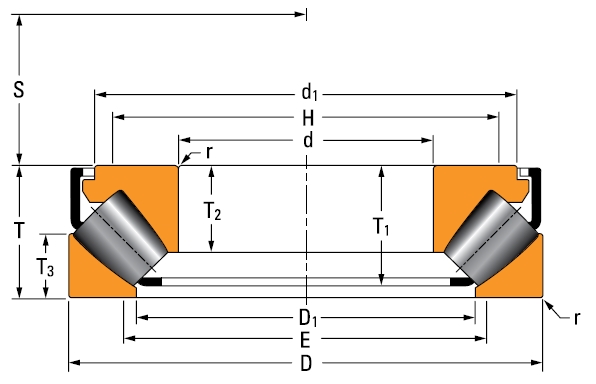

Dimensions
D - Outside Diameter
420 mm
d1 - Cone Outside Diameter
371.6 mm
D1 - Cup Bore
300 mm
E - Shoulder Diameter - Housing (Max)
317 mm
H - Shoulder Diameter - Shaft (Min)
339 mm
r - Fillet Radius
5 mm
S - Dimension
132 mm
T - Total Width
122 mm
T1 - Cage Position
105.7 mm
T3 - Cup Width
58.5 mm
T4 - Cone Width
77 mm
Basic Load Ratings
Static Load Rating
9090000 N
Dynamic Load Rating
3350000 N
Thermal Speed Rating
830 rpm
