Timken 29448EJ

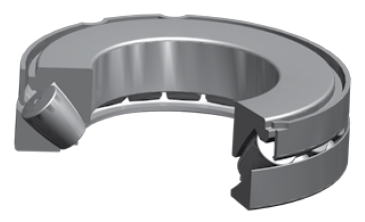

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
240 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796227675

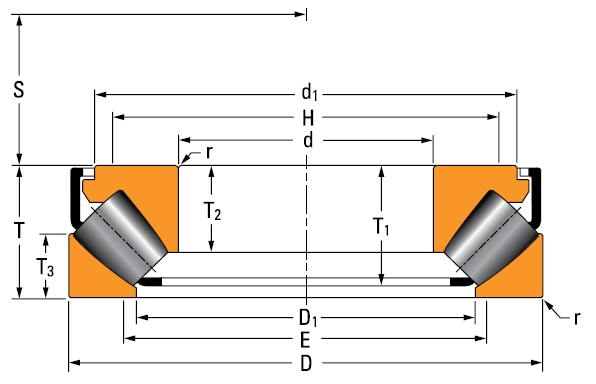

Dimensions
D - Outside Diameter
440 mm
d1 - Cone Outside Diameter
391.6 mm
D1 - Cup Bore
322 mm
E - Shoulder Diameter - Housing (Max)
338 mm
H - Shoulder Diameter - Shaft (Min)
360 mm
r - Fillet Radius
5 mm
S - Dimension
142 mm
T - Total Width
122 mm
T1 - Cage Position
104.7 mm
T3 - Cup Width
59 mm
T4 - Cone Width
76 mm
Basic Load Ratings
Static Load Rating
9520000 N
Dynamic Load Rating
3410000 N
Thermal Speed Rating
770 rpm
